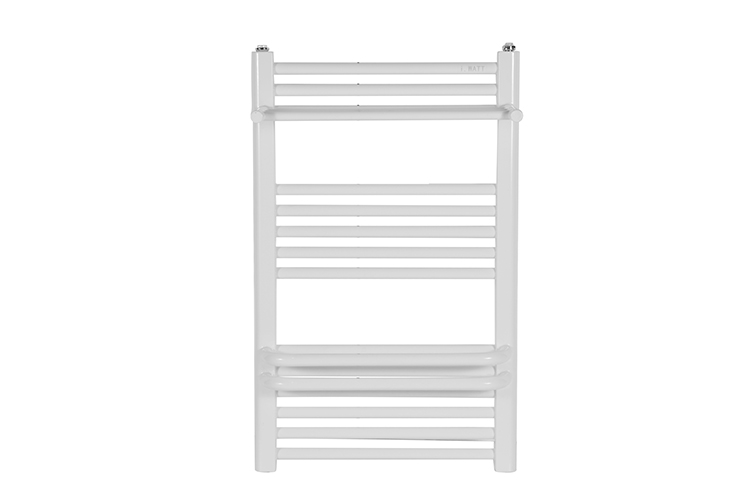

台式卫浴散热器
嘉玛台式卫浴散热器，顶部设计有叠放烘干平台让浴巾保持干燥松软温暖，更多横向支管适合挂晾烘干让毛巾衣物远离潮湿霉菌异味。
产品详情和技术参数
| 指标名称 | 具体参数 | 指标名称 | 具体参数 |
| 订货货号 | 123315122 | 商品条码 | 6975891790702 |
| 产品名称 | 嘉玛台式卫浴散热器 | 产品型号 | GM302-500*800 |
| 产品原材料 | 低碳冷轧钢管 | 生产标准 | GB/T 29039-2012 |
| 产品高度 | 800mm | 产品宽度 | 500mm |
| 产品厚度(含支架) | 145mm | 中心距 | 460mm |
| 底面技术 | 酸洗磷化 | 底漆原料 | 磷酸+柠檬酸+缓蚀剂 |
| 涂层技术 | 两遍电子喷涂 | 涂层原料 | AkzoNobel环保环氧树脂 |
| 涂层厚度 | 130-280μm | 涂层附着力等级 | GB/T9286 2级 |
| 金属热强度 | 1.0W/kg·℃ | 散热量(△T=64.5℃) | 550W |
| 钢板壁厚 | 1.5mm | 产品重量 | 12KG |
| 最大承受压力 | 1.5Mpa | 接口尺寸 | F1/2'' |
质保
毛巾架产品质保2年，管用10年，因运输碰损、堆压变形或安装不规范造成的问题不在质保范围。
同类型产品推荐
array(41) {
["id"] => string(3) "310"
["uid"] => string(1) "1"
["name"] => string(0) ""
["title"] => string(33) "立式全封闭直流变频风盘"
["category_id"] => string(2) "46"
["group_id"] => string(1) "0"
["description"] => string(178) "嘉玛立式明装变频冷暖风机盘管内机，直流无刷变频电机节能更安静，条形风口螺旋送风效率高，不锈钢接水盘,全封闭机身隔音隔温。"
["root"] => string(1) "0"
["pid"] => string(1) "0"
["model_id"] => string(2) "16"
["type"] => string(1) "2"
["position"] => string(1) "0"
["link_id"] => string(1) "0"
["cover_id"] => string(3) "211"
["display"] => string(1) "1"
["deadline"] => string(1) "0"
["attach"] => string(1) "0"
["view"] => string(3) "995"
["comment"] => string(1) "0"
["extend"] => string(1) "0"
["level"] => string(1) "8"
["create_time"] => string(10) "1700137368"
["update_time"] => string(10) "1784453859"
["status"] => string(1) "1"
["keywords"] => string(0) ""
["author"] => string(0) ""
["standard"] => string(127) "直流变频|直流无刷变频电机，启动电流小运行效率高，防尘结构运行平稳噪音低，省电寿命长。"
["advantage"] => string(217) "<p>
直流无刷变频电机防尘低噪音节能好
</p>
<p>
条形风口送风效率高蜗壳叶轮低噪音
</p>
<p>
304保温接水盘全封闭机壳隔音隔温
</p>"
["content"] => string(182) "<img src="/Uploads/Editor/2023-11-16/65560974d6355.jpg" alt="" /><img src="/Uploads/Editor/2023-11-16/6556097a9cad3.jpg" alt="" />"
["imgarr"] => string(91) "<img src="/Uploads/Editor/2023-11-16/6556096ac6690.jpg" alt="" />"
["longyuan"] => string(127) "封闭结构|全封闭机壳结构，双面酸洗磷化喷涂高温固化处理，内贴隔温防潮吸音棉隔温又隔音。"
["fangbian"] => string(127) "螺旋送风|条形风口配合蜗壳叶轮螺旋送风，运转平稳静压稳定诱导率高，温度交换迅速噪音小。"
["env"] => string(120) "304水盘|不锈钢304冷轧钢材质接水盘，一次冲压成型，增加特厚PE保温，终身不腐不易结垢。"
["zhibao"] => string(28) "风盘类产品质保2年。"
["prodesc"] => string(160) "立式变频冷暖风盘内机，直流无刷变频电机节能更安静，条形风口螺旋送风效率高，不锈钢接水盘,全封闭机身隔音隔温。"
["downloadmanual"] => string(0) ""
["promanualattach"] => string(0) ""
["prodescattach"] => string(0) ""
["provideo"] => string(0) ""
["enva"] => string(0) ""
["envb"] => string(0) ""
}
array(41) {
["id"] => string(3) "309"
["uid"] => string(1) "1"
["name"] => string(0) ""
["title"] => string(33) "静音全封闭直流变频风盘"
["category_id"] => string(2) "46"
["group_id"] => string(1) "0"
["description"] => string(174) "嘉玛超静音全封闭直流变频风机盘管内机，直流无刷电机效率高更安静，上排水泵减少层高占用，不锈钢全封闭机身超薄隔音隔温。"
["root"] => string(1) "0"
["pid"] => string(1) "0"
["model_id"] => string(2) "16"
["type"] => string(1) "2"
["position"] => string(1) "0"
["link_id"] => string(1) "0"
["cover_id"] => string(3) "210"
["display"] => string(1) "1"
["deadline"] => string(1) "0"
["attach"] => string(1) "0"
["view"] => string(4) "1282"
["comment"] => string(1) "0"
["extend"] => string(1) "0"
["level"] => string(1) "9"
["create_time"] => string(10) "1700136880"
["update_time"] => string(10) "1784453852"
["status"] => string(1) "1"
["keywords"] => string(0) ""
["author"] => string(5) "admin"
["standard"] => string(127) "直流无刷|直流无刷电机半封闭永久电容，启动电流小运行效率高，运行平稳噪音低，省电耐用。"
["advantage"] => string(220) "<p>
直流无刷电机启动效率高省电有低噪
</p>
<p>
标配冷凝水提升泵解决吊顶高度制约
</p>
<p>
不锈钢全封闭结构超薄厚度隔音隔温
</p>"
["content"] => string(182) "<img src="/Uploads/Editor/2023-11-16/655607a86b185.jpg" alt="" /><img src="/Uploads/Editor/2023-11-16/655607add29b0.jpg" alt="" />"
["imgarr"] => string(91) "<img src="/Uploads/Editor/2023-11-16/65560715156dc.jpg" alt="" />"
["longyuan"] => string(123) "提升水泵|柔标配冷凝水提升泵，提升高度750mm，解决吊顶高度制约排水问题，实现超薄吊顶。"
["fangbian"] => string(123) "封闭结构|全封闭机壳结构，超薄设计高度198mm，内贴隔温防潮吸音保温棉，噪音超低隔温好。"
["env"] => string(121) "304水盘|不锈钢304冷轧钢材质接水盘，耐腐蚀韧性好，牢固耐用，亮泽持久，不易结构堆积。"
["zhibao"] => string(28) "风盘类产品质保2年。"
["prodesc"] => string(162) "超静音全封闭直流变频风管内机，直流无刷电机效率高更安静，上排水泵减少层高占用，不锈钢全封闭机身超薄隔音隔温。"
["downloadmanual"] => string(0) ""
["promanualattach"] => string(0) ""
["prodescattach"] => string(0) ""
["provideo"] => string(0) ""
["enva"] => string(0) ""
["envb"] => string(0) ""
}
array(41) {
["id"] => string(3) "213"
["uid"] => string(1) "1"
["name"] => string(0) ""
["title"] => string(21) "背篓卫浴散热器"
["category_id"] => string(2) "46"
["group_id"] => string(1) "0"
["description"] => string(265) "指标名称具体参数指标名称具体参数订货货号123315121商品条码6975891790689产品名称嘉玛背篓毛巾架产品型号GM301-490*800产品原材料低碳冷轧钢管生产标准GB/T29039-2012产品高度800mm产品宽度490mm产品厚度100mm..."
["root"] => string(1) "0"
["pid"] => string(1) "0"
["model_id"] => string(2) "16"
["type"] => string(1) "2"
["position"] => string(1) "0"
["link_id"] => string(1) "0"
["cover_id"] => string(2) "90"
["display"] => string(1) "1"
["deadline"] => string(1) "0"
["attach"] => string(1) "0"
["view"] => string(4) "1534"
["comment"] => string(1) "0"
["extend"] => string(1) "0"
["level"] => string(1) "1"
["create_time"] => string(10) "1696818325"
["update_time"] => string(10) "1700965608"
["status"] => string(1) "1"
["keywords"] => string(56) "嘉玛,GARMA,散热器,暖气,明装,毛巾架,卫浴式"
["author"] => string(5) "admin"
["standard"] => string(103) "经典造型|经典实用的背篓造型，比直板毛巾架更实用，挂晾毛巾衣物效果佳。"
["advantage"] => string(211) "<p>
上下挂晾结构让衣物烘干松软温暖
</p>
<p>
横向加热支管让毛巾干燥无菌无味
</p>
<p>
阿克苏诺贝尔环保油漆无缝融焊接
</p>"
["content"] => string(9778) "<p>
<table border="0" cellpadding="0" cellspacing="0" style="width:100%;" class="ke-zeroborder">
<tbody>
<tr>
<td height="25" class="xl63" width="214">
指标名称
</td>
<td class="xl63" width="318">
具体参数
</td>
<td class="xl63" width="228">
指标名称
</td>
<td class="xl63" width="287">
具体参数
</td>
</tr>
<tr>
<td height="25" class="xl63">
订货货号
</td>
<td class="xl63">
123315121
</td>
<td class="xl63">
商品条码
</td>
<td class="xl64">
6975891790689
</td>
</tr>
<tr>
<td height="25" class="xl63">
产品名称
</td>
<td class="xl63">
嘉玛背篓毛巾架
</td>
<td class="xl63">
产品型号
</td>
<td class="xl64">
GM301-490*800
</td>
</tr>
<tr>
<td height="25" class="xl63">
产品原材料
</td>
<td class="xl63">
低碳冷轧钢管
</td>
<td class="xl63">
生产标准
</td>
<td class="xl63">
GB/T 29039-2012
</td>
</tr>
<tr>
<td height="25" class="xl63">
产品高度
</td>
<td class="xl63">
800mm
</td>
<td class="xl63">
产品宽度
</td>
<td class="xl63">
490mm
</td>
</tr>
<tr>
<td height="25" class="xl63">
产品厚度
</td>
<td class="xl66">
100mm
</td>
<td class="xl66">
中心距
</td>
<td class="xl66">
450mm
</td>
</tr>
<tr>
<td height="25" class="xl65">
底面技术
</td>
<td class="xl65">
酸洗磷化
</td>
<td class="xl66">
底漆原料
</td>
<td class="xl66">
磷酸+柠檬酸+缓蚀剂
</td>
</tr>
<tr>
<td height="25" class="xl63">
涂层技术
</td>
<td class="xl63">
两遍电子喷涂
</td>
<td class="xl66">
涂层原料
</td>
<td class="xl66">
AkzoNobel环保环氧树脂
</td>
</tr>
<tr>
<td height="25" class="xl66">
涂层厚度
</td>
<td class="xl66">
130-280μm
</td>
<td class="xl66">
涂层附着力等级
</td>
<td class="xl66">
GB/T9286 2级
</td>
</tr>
<tr>
<td height="25" class="xl63">
金属热强度
</td>
<td class="xl63">
1.2W/kg·℃
</td>
<td class="xl66">
散热量(△T=64.5℃)
</td>
<td class="xl66">
595W
</td>
</tr>
<tr>
<td height="25" class="xl63">
钢板壁厚
</td>
<td class="xl63">
1.5mm
</td>
<td class="xl66">
产品重量
</td>
<td class="xl66">
9.3KG
</td>
</tr>
<tr>
<td height="25" class="xl66">
最大承受压力&nbsp;
</td>
<td class="xl66">
2.25Mpa
</td>
<td class="xl66">
接口尺寸
</td>
<td class="xl66">
F1/2''
</td>
</tr>
</tbody>
</table>
</p>
<p>
<table border="0" cellpadding="0" cellspacing="0" style="width:100%;" class="ke-zeroborder">
<tbody>
<tr>
<td height="25" class="xl65" width="214">
指标名称
</td>
<td class="xl65" width="318">
具体参数
</td>
<td class="xl65" width="228">
指标名称
</td>
<td class="xl65" width="287">
具体参数
</td>
</tr>
<tr>
<td height="25" class="xl65">
订货货号
</td>
<td class="xl65">
123315122
</td>
<td class="xl65">
商品条码
</td>
<td class="xl66">
6975891790696
</td>
</tr>
<tr>
<td height="25" class="xl65">
产品名称
</td>
<td class="xl65">
嘉玛背篓毛巾架
</td>
<td class="xl65">
产品型号
</td>
<td class="xl66">
GM301-490*1000
</td>
</tr>
<tr>
<td height="25" class="xl65">
产品原材料
</td>
<td class="xl65">
低碳冷轧钢管
</td>
<td class="xl65">
生产标准
</td>
<td class="xl65">
GB/T 29039-2012
</td>
</tr>
<tr>
<td height="25" class="xl65">
产品高度
</td>
<td class="xl65">
1000mm
</td>
<td class="xl65">
产品宽度
</td>
<td class="xl65">
490mm
</td>
</tr>
<tr>
<td height="25" class="xl65">
产品厚度(含支架)
</td>
<td class="xl68">
100mm
</td>
<td class="xl68">
中心距
</td>
<td class="xl68">
450mm
</td>
</tr>
<tr>
<td height="25" class="xl67">
底面技术
</td>
<td class="xl67">
酸洗磷化
</td>
<td class="xl68">
底漆原料
</td>
<td class="xl68">
磷酸+柠檬酸+缓蚀剂
</td>
</tr>
<tr>
<td height="25" class="xl65">
涂层技术
</td>
<td class="xl65">
两遍电子喷涂
</td>
<td class="xl68">
涂层原料
</td>
<td class="xl68">
AkzoNobel环保环氧树脂
</td>
</tr>
<tr>
<td height="25" class="xl68">
涂层厚度
</td>
<td class="xl68">
130-280μm
</td>
<td class="xl68">
涂层附着力等级
</td>
<td class="xl68">
GB/T9286 2级
</td>
</tr>
<tr>
<td height="25" class="xl65">
金属热强度
</td>
<td class="xl65">
1.0W/kg·℃
</td>
<td class="xl68">
散热量(△T=64.5℃)
</td>
<td class="xl68">
735W
</td>
</tr>
<tr>
<td height="25" class="xl65">
钢板壁厚
</td>
<td class="xl65">
1.5mm
</td>
<td class="xl68">
产品重量
</td>
<td class="xl68">
12KG
</td>
</tr>
<tr>
<td height="25" class="xl68">
最大承受压力&nbsp;
</td>
<td class="xl68">
1.5Mpa
</td>
<td class="xl68">
接口尺寸
</td>
<td class="xl68">
F1/2''
</td>
</tr>
</tbody>
</table>
</p>
<p>
<br />
</p>
<p>
<img src="/Uploads/Editor/2023-10-08/652297d50222b.jpg" alt="" /><img src="/Uploads/Editor/2023-10-08/652297da022d1.jpg" alt="" /><img src="/Uploads/Editor/2023-10-08/652297e009902.jpg" alt="" /><img src="/Uploads/Editor/2023-10-08/652297e67b111.jpg" alt="" /><img src="/Uploads/Editor/2023-10-08/652298069781b.jpg" alt="" /><img src="/Uploads/Editor/2023-10-08/6522980c3284e.jpg" alt="" />
</p>"
["imgarr"] => string(182) "<img src="/Uploads/Editor/2023-10-09/652366d5ac2fb.jpg" alt="" /><img src="/Uploads/Editor/2023-10-09/652366db614dd.jpg" alt="" />"
["longyuan"] => string(103) "环保烤漆|选用荷兰阿克苏诺贝尔环保油粉末，烤漆光滑，环保无味经久耐用。"
["fangbian"] => string(103) "更多散热|较传统背篓型号增加更多横杆设计，增加毛巾架散热面积和散热量。"
["env"] => string(106) "无缝焊接|采用融焊工艺主支管焊接无痕迹，油漆覆盖均匀到位，耐久不腐不锈。"
["zhibao"] => string(113) "暖气类产品质保10年，因运输碰损、堆压变形或安装不规范造成的问题不在质保范围。"
["prodesc"] => string(174) "嘉玛背篓卫浴散热器，上下两道挂式结构晾烘毛巾衣物保持干燥松软温暖，更多横向支管既散热采暖又挂晾烘干远离潮湿霉菌异味。"
["downloadmanual"] => string(0) ""
["promanualattach"] => string(183) "<a class="ke-insertfile" href="/Uploads/Editor/2023-10-08/652299291a19e.pdf" target="_blank">/Uploads/Editor/2023-10-08/652299291a19e.pdf</a>"
["prodescattach"] => string(0) ""
["provideo"] => string(0) ""
["enva"] => string(0) ""
["envb"] => string(0) ""
}
array(41) {
["id"] => string(3) "212"
["uid"] => string(1) "1"
["name"] => string(0) ""
["title"] => string(21) "钢制高片散热器"
["category_id"] => string(2) "46"
["group_id"] => string(1) "0"
["description"] => string(257) "指标名称具体参数指标名称具体参数订货货号121315702商品条码6975891790672产品名称嘉玛钢制板式散热器22K-1800产品型号GM-22K-1800*500产品原材料首钢SPCC冷轧钢生产标准GB/T29039-2012钢板壁厚1.1mm对流翅..."
["root"] => string(1) "0"
["pid"] => string(1) "0"
["model_id"] => string(2) "16"
["type"] => string(1) "2"
["position"] => string(1) "0"
["link_id"] => string(1) "0"
["cover_id"] => string(2) "87"
["display"] => string(1) "1"
["deadline"] => string(1) "0"
["attach"] => string(1) "0"
["view"] => string(4) "2308"
["comment"] => string(1) "0"
["extend"] => string(1) "0"
["level"] => string(1) "4"
["create_time"] => string(10) "1696764667"
["update_time"] => string(10) "1755961493"
["status"] => string(1) "1"
["keywords"] => string(50) "嘉玛,GARMA,高片,钢板,散热器,暖气,明装"
["author"] => string(5) "admin"
["standard"] => string(95) "堆料|首钢正1.0SPCC钢带、浩力森车规级电泳漆、阿克苏诺贝尔环保漆粉。"
["advantage"] => string(202) "<p>
二次阴极电泳车规级别环保漆粉
</p>
<p>
八道预处理两遍油漆全自动产线
</p>
<p>
高片美观不占空间超高散热效率
</p>"
["content"] => string(4090) "<p>
<table border="0" cellpadding="0" cellspacing="0" style="width:100%;" class="ke-zeroborder">
<tbody>
<tr>
<td height="25" class="xl63" width="214">
指标名称
</td>
<td class="xl63" width="318">
具体参数
</td>
<td class="xl63" width="228">
指标名称
</td>
<td class="xl63" width="287">
具体参数
</td>
</tr>
<tr>
<td height="25" class="xl63">
订货货号
</td>
<td class="xl63">
121315702
</td>
<td class="xl63">
商品条码
</td>
<td class="xl64">
6975891790672
</td>
</tr>
<tr>
<td height="25" class="xl63">
产品名称
</td>
<td class="xl63">
嘉玛钢制板式散热器 22K-1800
</td>
<td class="xl63">
产品型号
</td>
<td class="xl63">
GM-22K-1800*500
</td>
</tr>
<tr>
<td height="25" class="xl63">
产品原材料
</td>
<td class="xl63">
首钢SPCC冷轧钢
</td>
<td class="xl63">
生产标准
</td>
<td class="xl63">
GB/T 29039-2012
</td>
</tr>
<tr>
<td height="25" class="xl65">
钢板壁厚
</td>
<td class="xl65">
1.1mm
</td>
<td class="xl66">
对流翅片厚度
</td>
<td class="xl66">
0.5mm
</td>
</tr>
<tr>
<td height="25" class="xl65">
底漆技术
</td>
<td class="xl65">
CED阴极电泳
</td>
<td class="xl66">
底漆原料
</td>
<td class="xl66">
Haolisen电泳底漆料
</td>
</tr>
<tr>
<td height="25" class="xl65">
涂层技术
</td>
<td class="xl65">
16向电子喷涂
</td>
<td class="xl66">
涂层原料
</td>
<td class="xl66">
AkzoNobel环保漆粉
</td>
</tr>
<tr>
<td height="25" class="xl66">
涂层厚度
</td>
<td class="xl66">
88-102μm
</td>
<td class="xl66">
涂层附着力等级
</td>
<td class="xl66">
GB/T9286 2级
</td>
</tr>
<tr>
<td height="25" class="xl66">
最大承受压力&nbsp;
</td>
<td class="xl66">
1.5Mpa
</td>
<td class="xl66">
接口尺寸
</td>
<td class="xl66">
F1''
</td>
</tr>
<tr>
<td height="25" class="xl66">
侧中心距
</td>
<td class="xl66">
1745mm
</td>
<td class="xl66">
底中心距
</td>
<td class="xl66">
435mm
</td>
</tr>
</tbody>
</table>
<span><br />
</span>
</p>
<p>
<br />
</p>
<p>
<br />
</p>
<p>
<br />
</p>
<p>
<br />
</p>"
["imgarr"] => string(91) "<img src="/Uploads/Editor/2023-10-08/65229390a79d0.jpg" alt="" />"
["longyuan"] => string(100) "堆线|德国舒勒自动化冲床、西门子控制自动焊接、京山轻工自动打包设备。"
["fangbian"] => string(103) "堆工艺|八道预处理，两次油漆，打造真正持久耐用无毒环保的钢制散热设备。"
["env"] => string(115) "第三代阴极电泳|采用汽车行业车架的主流处理工艺，第三代阴极电泳，浸保式全覆盖。"
["zhibao"] => string(113) "暖气类产品质保10年，因运输碰损、堆压变形或安装不规范造成的问题不在质保范围。"
["prodesc"] => string(183) "嘉玛钢制板同步欧洲产品的原料标准，全自动化生产线打造，宝马汽车同工艺电泳车漆处理，加高翅片更多散热量水滴扰流盖板更快升温。"
["downloadmanual"] => string(0) ""
["promanualattach"] => string(175) "<a class="ke-insertfile" href="/Uploads/Editor/2025-08-23/68a9d8899f3d9.pdf" target="_blank">标准型暖气片单页</a><br />"
["prodescattach"] => string(0) ""
["provideo"] => string(0) ""
["enva"] => string(112) "水滴扰流|嘉玛散热器独有水滴形盖板，热气出风扰流对流混合升温，提升散热效率。"
["envb"] => string(112) "六孔接管|嘉玛高片独有六个方向接管，支持底进底出、下进下出、侧进侧出等方式。"
}
array(41) {
["id"] => string(3) "209"
["uid"] => string(1) "1"
["name"] => string(0) ""

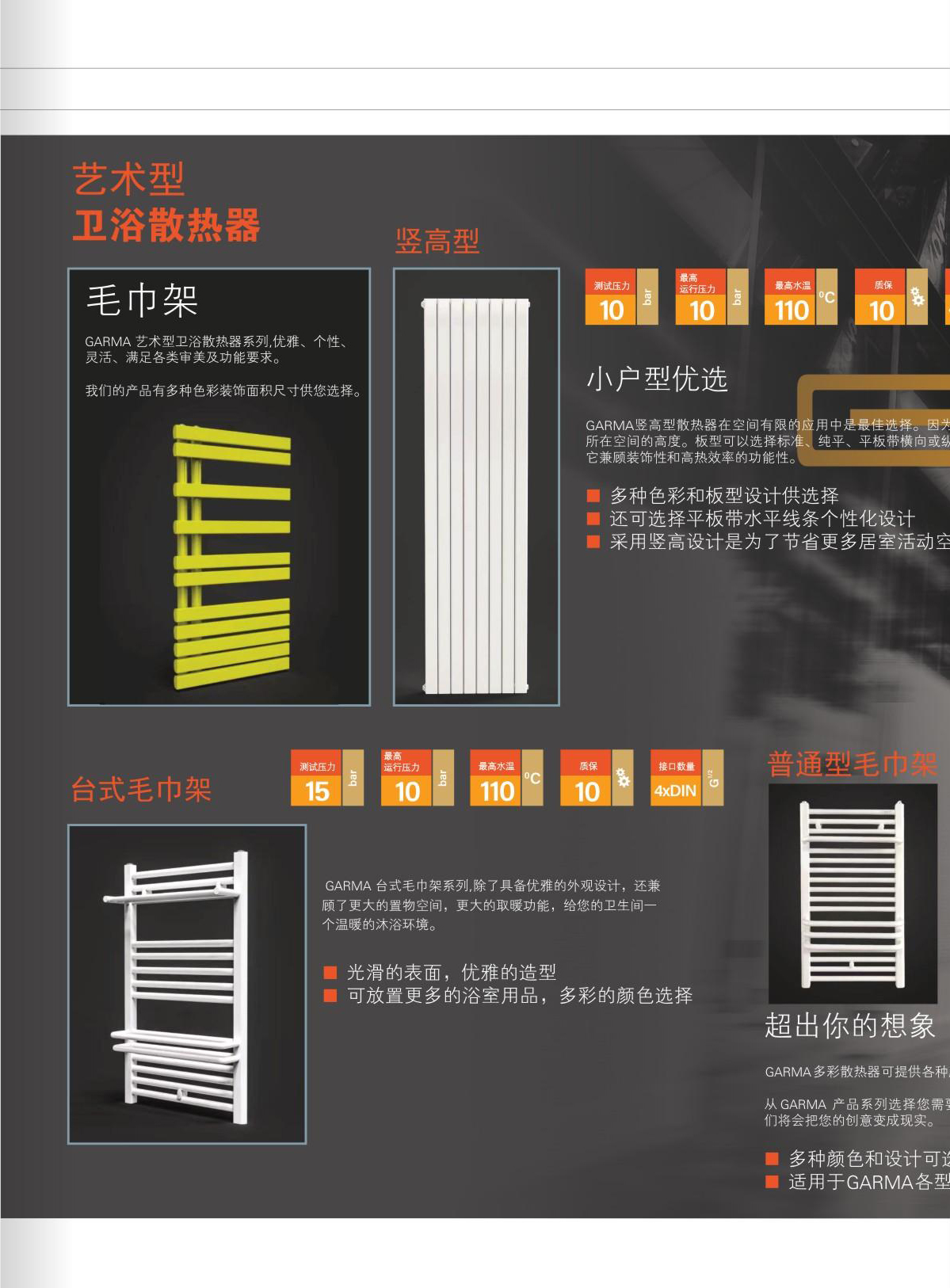

["title"] => string(21) "台式卫浴散热器"
["category_id"] => string(2) "46"
["group_id"] => string(1) "0"
["description"] => string(273) "指标名称具体参数指标名称具体参数订货货号123315122商品条码6975891790702产品名称嘉玛台式卫浴散热器产品型号GM302-500*800产品原材料低碳冷轧钢管生产标准GB/T29039-2012产品高度800mm产品宽度500mm产品厚度(含支..."
["root"] => string(1) "0"
["pid"] => string(1) "0"
["model_id"] => string(2) "16"
["type"] => string(1) "2"
["position"] => string(1) "0"
["link_id"] => string(1) "0"
["cover_id"] => string(2) "78"
["display"] => string(1) "1"
["deadline"] => string(1) "0"
["attach"] => string(1) "0"
["view"] => string(4) "1347"
["comment"] => string(1) "0"
["extend"] => string(1) "0"
["level"] => string(1) "2"
["create_time"] => string(10) "1693399009"
["update_time"] => string(10) "1700965627"
["status"] => string(1) "1"
["keywords"] => string(56) "嘉玛,GARMA,散热器,暖气,明装,毛巾架,卫浴式"
["author"] => string(5) "admin"
["standard"] => string(106) "创新造型|创新的台式毛巾架造型，顶部叠放烘干浴巾让您享受更舒适浴后体验。"
["advantage"] => string(211) "<p>
叠放烘干平台让浴巾干燥松软温暖
</p>
<p>
横向加热支管让毛巾干燥无菌无味
</p>
<p>
阿克苏诺贝尔环保油漆无缝融焊接
</p>"
["content"] => string(5203) "<p>
<table border="0" cellpadding="0" cellspacing="0" style="width:100%;" class="ke-zeroborder">
<tbody>
<tr>
<td height="25" class="xl63" width="214">
指标名称
</td>
<td class="xl63" width="318">
具体参数
</td>
<td class="xl63" width="228">
指标名称
</td>
<td class="xl63" width="287">
具体参数
</td>
</tr>
<tr>
<td height="25" class="xl63">
订货货号
</td>
<td class="xl63">
123315122
</td>
<td class="xl63">
商品条码
</td>
<td class="xl64">
6975891790702
</td>
</tr>
<tr>
<td height="25" class="xl63">
产品名称
</td>
<td class="xl63">
嘉玛台式卫浴散热器
</td>
<td class="xl63">
产品型号
</td>
<td class="xl64">
GM302-500*800
</td>
</tr>
<tr>
<td height="25" class="xl63">
产品原材料
</td>
<td class="xl63">
低碳冷轧钢管
</td>
<td class="xl63">
生产标准
</td>
<td class="xl63">
GB/T 29039-2012
</td>
</tr>
<tr>
<td height="25" class="xl63">
产品高度
</td>
<td class="xl63">
800mm
</td>
<td class="xl63">
产品宽度
</td>
<td class="xl63">
500mm
</td>
</tr>
<tr>
<td height="25" class="xl63">
产品厚度(含支架)
</td>
<td class="xl66">
145mm
</td>
<td class="xl66">
中心距
</td>
<td class="xl66">
460mm
</td>
</tr>
<tr>
<td height="25" class="xl65">
底面技术
</td>
<td class="xl65">
酸洗磷化
</td>
<td class="xl66">
底漆原料
</td>
<td class="xl66">
磷酸+柠檬酸+缓蚀剂
</td>
</tr>
<tr>
<td height="25" class="xl63">
涂层技术
</td>
<td class="xl63">
两遍电子喷涂
</td>
<td class="xl66">
涂层原料
</td>
<td class="xl66">
AkzoNobel环保环氧树脂
</td>
</tr>
<tr>
<td height="25" class="xl66">
涂层厚度
</td>
<td class="xl66">
130-280μm
</td>
<td class="xl66">
涂层附着力等级
</td>
<td class="xl66">
GB/T9286 2级
</td>
</tr>
<tr>
<td height="25" class="xl63">
金属热强度
</td>
<td class="xl63">
1.0W/kg·℃
</td>
<td class="xl66">
散热量(△T=64.5℃)
</td>
<td class="xl66">
550W
</td>
</tr>
<tr>
<td height="25" class="xl63">
钢板壁厚
</td>
<td class="xl63">
1.5mm
</td>
<td class="xl66">
产品重量
</td>
<td class="xl66">
12KG
</td>
</tr>
<tr>
<td height="25" class="xl66">
最大承受压力&nbsp;
</td>
<td class="xl66">
1.5Mpa
</td>
<td class="xl66">
接口尺寸
</td>
<td class="xl66">
F1/2''
</td>
</tr>
</tbody>
</table>
</p>
<p>
<br />
</p>
<p>
<img src="/Uploads/Editor/2023-10-08/652297d50222b.jpg" alt="" /><img src="/Uploads/Editor/2023-10-08/652297da022d1.jpg" alt="" /><img src="/Uploads/Editor/2023-10-08/652297e009902.jpg" alt="" /><img src="/Uploads/Editor/2023-10-08/652297e67b111.jpg" alt="" /><img src="/Uploads/Editor/2023-10-08/652298069781b.jpg" alt="" /><img src="/Uploads/Editor/2023-10-08/6522980c3284e.jpg" alt="" />
</p>"
["imgarr"] => string(273) "<img src="/Uploads/Editor/2023-10-08/6522923ba42e9.jpg" alt="" /><img src="/Uploads/Editor/2023-10-08/65229241c7c88.jpg" alt="" /><img src="/Uploads/Editor/2023-10-08/652292c086ed8.jpg" alt="" />"
["longyuan"] => string(106) "烘干加热|下部双层加热对流烘干结构，更适合挂晾，让毛巾远离潮湿异味霉菌。"
["fangbian"] => string(103) "环保烤漆|选用荷兰阿克苏诺贝尔环保油粉末，烤漆光滑，环保无味保证健康。"
["env"] => string(106) "无缝焊接|采用融焊工艺主支管焊接无痕迹，油漆覆盖均匀到位，耐久不腐不锈。"
["zhibao"] => string(126) "毛巾架产品质保2年，管用10年，因运输碰损、堆压变形或安装不规范造成的问题不在质保范围。"
["prodesc"] => string(177) "嘉玛台式卫浴散热器，顶部设计有叠放烘干平台让浴巾保持干燥松软温暖，更多横向支管适合挂晾烘干让毛巾衣物远离潮湿霉菌异味。"
["downloadmanual"] => string(0) ""
["promanualattach"] => string(183) "<a class="ke-insertfile" href="/Uploads/Editor/2023-10-08/652299291a19e.pdf" target="_blank">/Uploads/Editor/2023-10-08/652299291a19e.pdf</a>"
["prodescattach"] => string(0) ""
["provideo"] => string(0) ""
["enva"] => string(0) ""
["envb"] => string(0) ""
}
